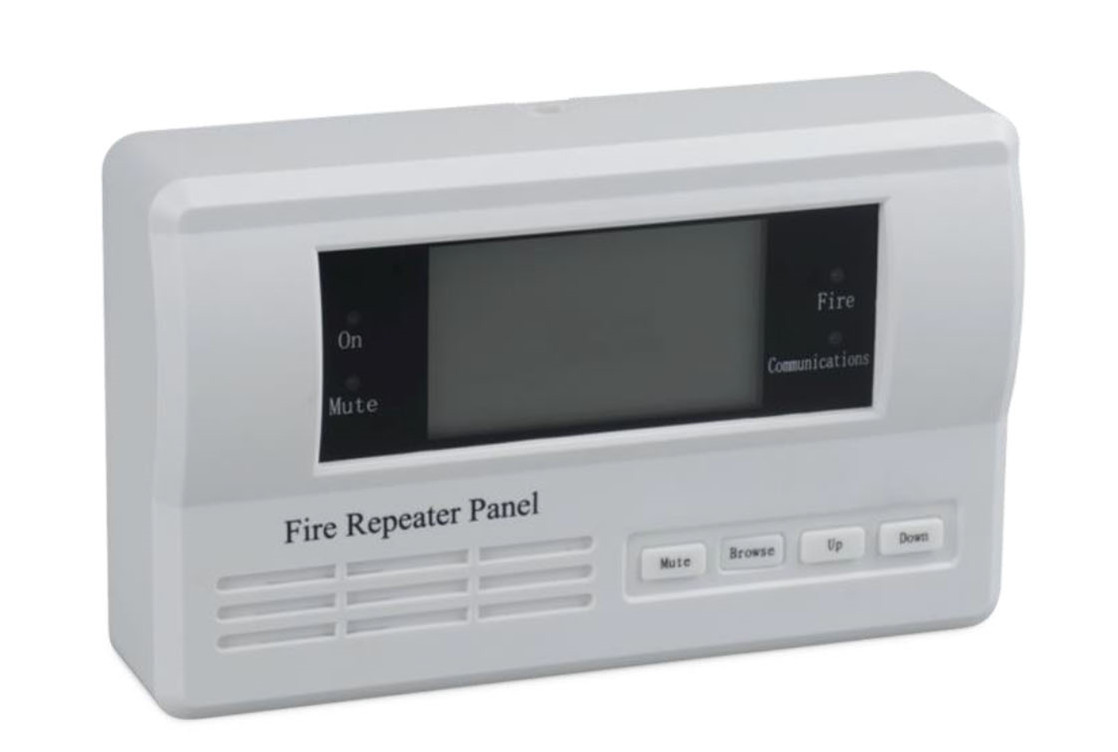

TX7330 LCD Repeater Panel


LCD Repeater Panel


1 Feature and Benefits

  • N54-2 Compliance
  • Fire display passive repeater panel
  • Built-in MCU processor and digital addressing
  • Fast response of audible and visible signal from the panel
  • Direct access common keys such as MUTE, UP, DOWN and BROWSE.
  • Programmable Zone Display such as All Zone, Single Zone and Three Adjacent Zone
  • LED status indicator
  • Onsite Adjustable Parameter
  • Loop sited wiring with external 24V supply
  • Surface mounting with fix base for simple installation

2 Technical Specification


EN 54-2: 1997+A1: 2006

Input Voltage

Loop Power: 24VDC [16V to 28V]


External PSU: 24VDC [20 to 28V]

Current Consumption

Loop: Standby: 1mA, Alarm: 1.2mA


External PSU: Standby: 25mA, Alarm: 80mA

Memory Capacity

Up to 300 fire event history

Number per loop

Up to 254 units (ideal)

Material / Colour

ABS / White Glossy finishing

Dimension / LWH

180mm x 110 mm x44 mm


300g (with Base), 256g (without Base)

Operating Temperature

0°C to +40°C


0 to 95% Relative Humidity, Non condensing
