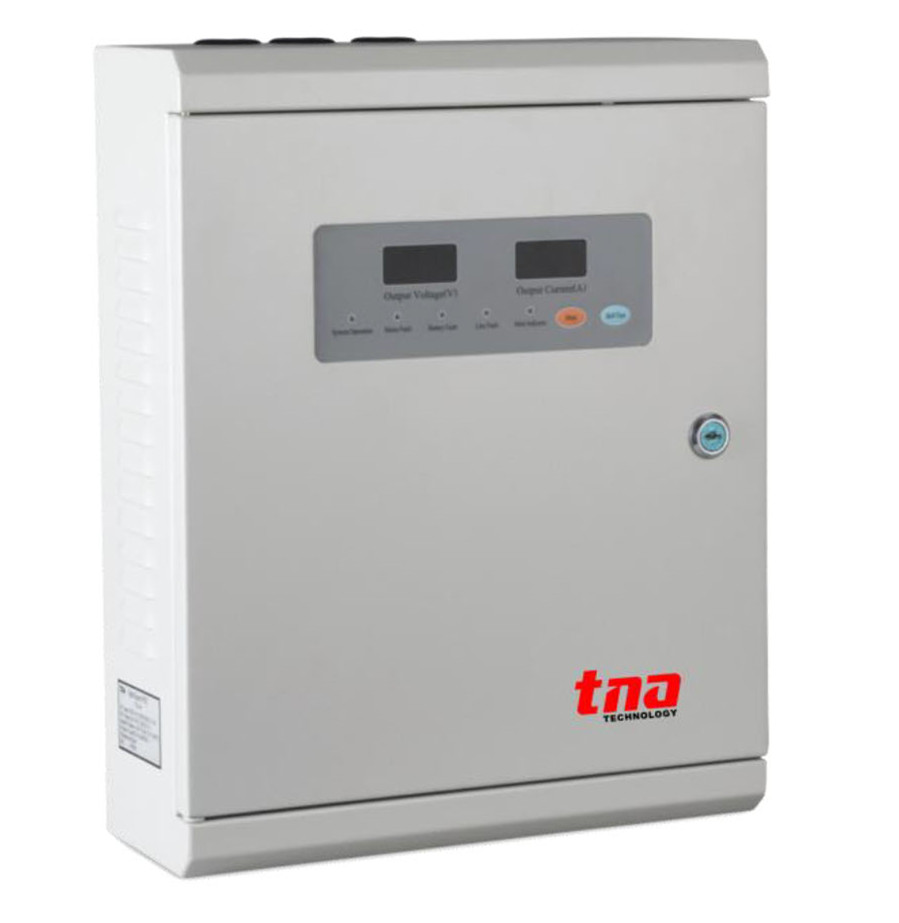

TX24-5A Intelligent Power Supply Unit

TX24-5A

Intelligent Power Supply Unit


1 Feature and Benefits

  • EN54-4 Compliance
  • Intelligent PSU
  • Wall mount, networkable
  • Digital display showing output voltage and load current
  • Overload, overcharge and over usage protection
  • Fully Monitored with Self-test function

2 Technical Specification

Output Power:

120W (24VDC/5A)

Operating Environment:

Temperature: -10~+60



Relative Humidity: ≤95%, non-condensing



Atmosphere: 86~106KPa

Power Supply:

Mains: AC220V(110-240V),50/60Hz, 130W



Backup: 24VDC/12Ah sealed lead-acid battery



(Not included)

Dimension:

400mm x 320mm x 120mm

IP Grade:

IP30

Mains and backup switching time:

No delay.
