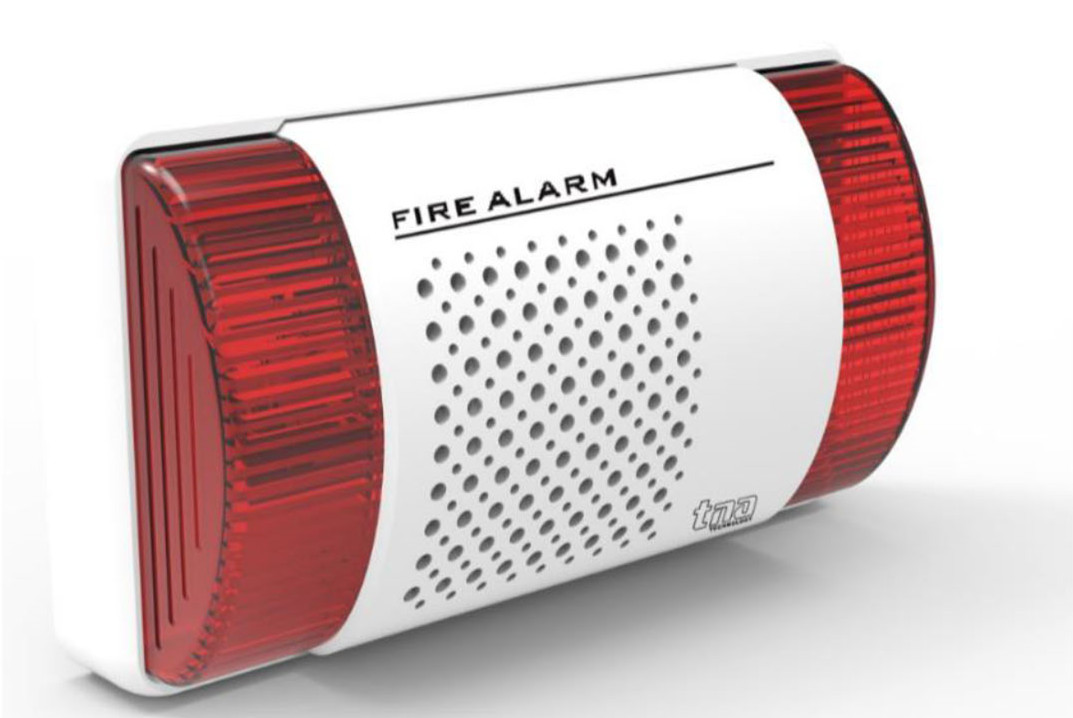

TX7301 Intelligent Sounder Strobe

TX7301

Intelligent Sounder Strobe


1 Feature and Benefits

  • EN54-3 Compliance
  • Built-in MCU processor and digital addressing
  • 17 tones Programmable sound output
  • Programmable types such as Sounder-Strobe, Sounder or Strobe alone
  • Programmable Evacuate or Pre-alarm/Evacuate signal
  • Low and normal consumption mode
  • One or Two addresses mode
  • 10 Highlights LED status cluster
  • Onsite Adjustable Parameters
  • Loop or external power input

2 Technical Specification

Input Voltage

Loop Power: 24VDC [18V to 27.5V]



External PSU: 24 VDC [20V to 27.5V]

Typical Current

Loop: Standby 0.7mA, Alarm: 1.5mA



External PSU: Standby 0.6mA, Alarm: 17mA

Saving Current

Standby 1.2mA, Alarm: 9mA

Protocol/Addressing

T&A, Value range from 1 to 254

Address Sequence

Single Address: Evacuate tone



Dual Address: 1st Alert Tone / 2nd Evacuate tone

Strobe Light

10 Highlights LED

Material / Colour

ABS / RED Glossy finishing

Dimension / Height

L:152.5 x W:88.5 x H:46.75 mm (without base)

Weight

184g (with Base), 124g (Without Base)

Class

Type A, Indoors

Operating Temperature

-10°C to +50°C

Humidity

0 to 95% Relative Humidity, Non condensing
