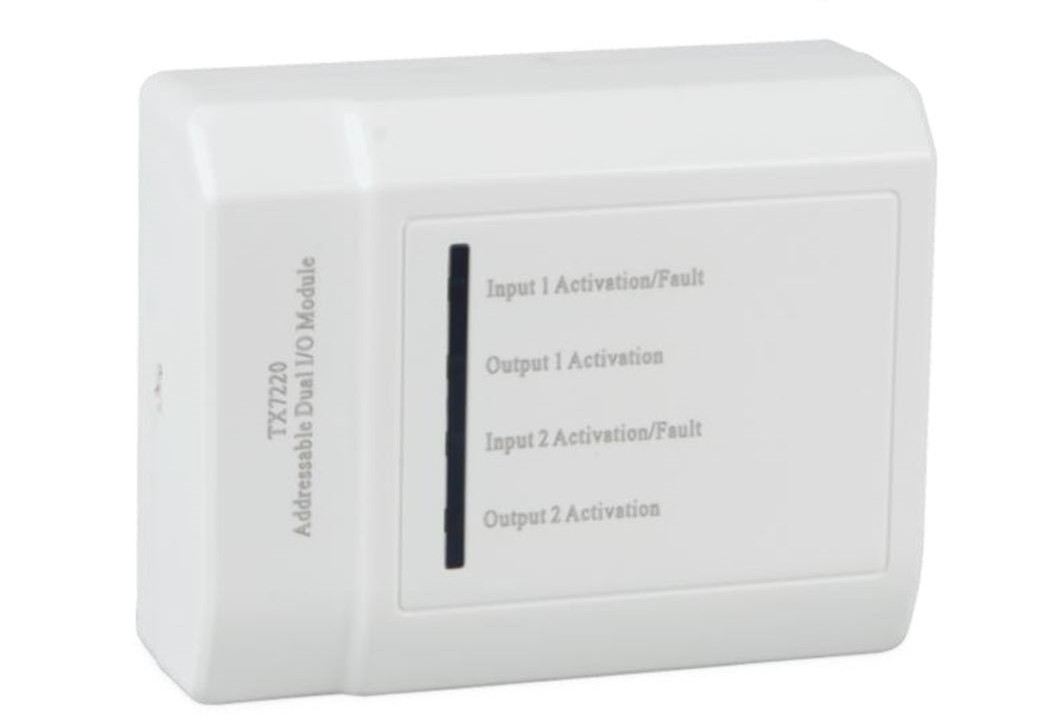

TX7220
Addressable Dual Input/Output Module
1 Feature and Benefits
- EN54-18 Compliance
- Built-in MCU processor and digital addressing
- Two circuits 24Vdc/3A Output relay contact and Control module
- Two circuits Input Fire or Supervisory signal configuration
- Dis/Enable Input and output cable monitored
- LED status indicator
- Onsite Adjustable Parameter
- Loop or external power input
- Aesthetically pleasing design
- Surface mounting with fix base for simple installation
|
Compliance |
EN54-18:2005/AC2007 |
|
Input Voltage |
Loop Power:24VDC [15V to 28V] |
|
|
External PSU: 20 to 28VDC |
|
Current Consumption |
Loop: Standby 0.6mA, Alarm: 2.6mA |
|
|
PSU: Standby 0.6mA, Alarm: 45mA |
|
Control output voltage |
24VDC / 3A rating (per circuit) |
|
Input Relay |
Normally Open dry contact |
|
Input Resistance |
5.1Kohms/ ¼ W (per circuit) |
|
Protocol/Addressing |
TNA, Value range from 1 to 254 |
|
Indicator Status |
Normal: Single blink/Active: Steady/Fault: Double Blink |
|
Material / Colour |
ABS / White Glossy finishing |
|
Dimension / LWH |
108 mm x 86 mm x38 mm |
|
Weight |
182g (with Base), 100g (without Base) |
|
Operating Temperature |
-10°C to +50°C |
|
Ingress Protection Rating |
IP30 |
|
Humidity |
0 to 95% Relative Humidity, Non condensing |
