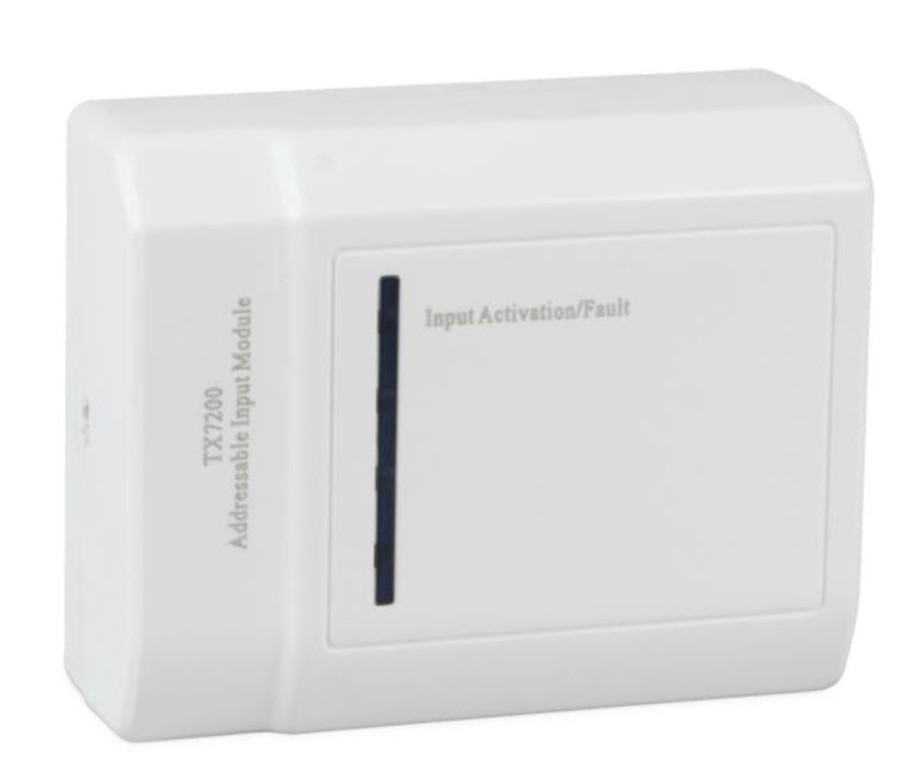

TX7200
Addressable Input Module
1 Feature and Benefits
- EN54-18 Compliance
- Built-in MCU processor and digital addressing
- Fire or Supervisory signal configuration
- Input cable monitored
- Normally open configuration
- LED status indicator
- Loop powered device
- Aesthetically pleasing design
- Surface mounting with fix base for simple installation
2 Technical Specification
|
Listed |
LPCB Pending |
|
|
Compliance |
EN54-18:2005/AC2007 |
|
|
Input Voltage |
24VDC [16V to 28V] |
|
|
Current Consumption |
Standby |
0.6mA, Alarm: 1.0mA |
|
Protocol/Addressing |
TNA, Value range from 1 to 254 |
|
|
Input Relay |
Normally Open dry contact |
|
|
Input Resistance |
5.1Kohms/ ¼ W |
|
|
Indicator Status |
Normal: |
Single blink/Active: Steady/Fault: |
|
Double Blink |
|
|
|
Material / Colour |
ABS / White Glossy finishing |
|
|
Dimension / LWH |
108 mm x 86 mm x38 mm |
|
|
Weight |
155g (with Base), 85g (without Base) |
|
|
Operating Temperature |
-10°C to +50°C |
|
|
Ingress Protection Rating |
IP30 |
|
|
Humidity |
0 to 95% Relative Humidity, Non condensing |
|
