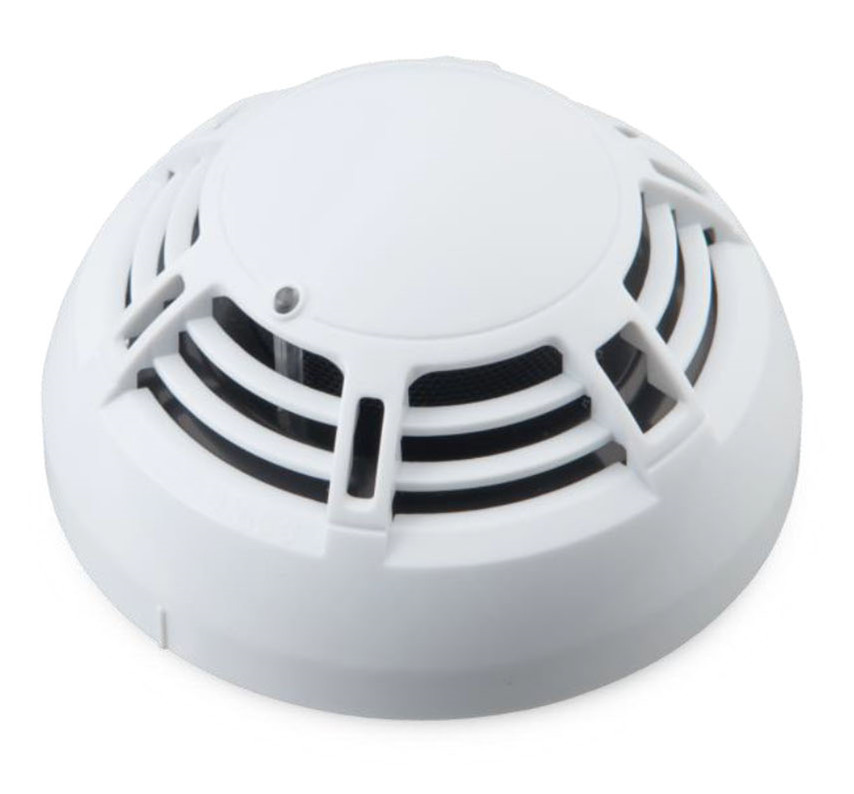

TX7120
Intelligent Addressable Smoke & Heat Detector
1 Feature and Benefits
- EN54-29 Compliance
- Using microprocessor technology with memory capacity up to 10 events
- Analogue sending and digital addressing
- Provide real time algorithm to the control panel
- Smart linear drift compensation
- 360 degree visual indicator
- Onsite Adjustable Parameter
- Removable chamber against dust and small insect
- Ancillary remote indicator output
- Aesthetically pleasing design
2 Technical Specification
l
Listed
LPCB Pending
l
Compliance
EN54-29
l
Input Voltage
24VDC [16V to 28V]
l
Current Consumption
Standby
0.6mA, Alarm: 4mA
l
Protocol/Addressing
TNA, Value range from 1 to 254
l
Smoke Sensitivity
As per stipulated standard
l
Heat Class Type
A2R
l
Indicator
Single LED / 360 degree Visual
l
Material / Colour
ABS / White Glossy finishing
l
Dimension / Height
Diameter 99.7 mm / 57 mm
l
Weight
145g (with Base), 90g (without Base)
l
Operating Temperature
-10°C to +50°C
l
Humidity
0 to 95% Relative Humidity, Non condensing

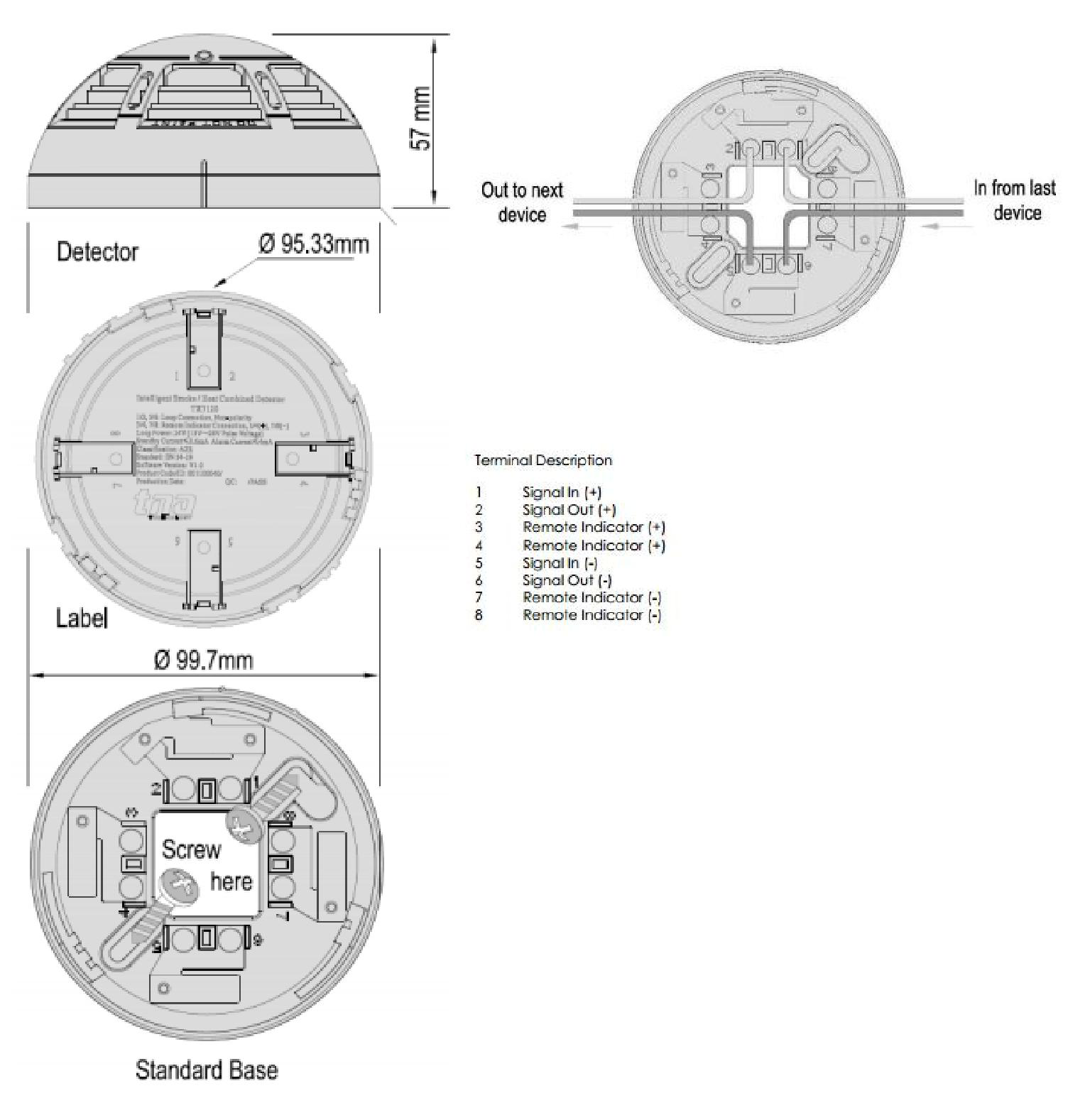

Installation and Wiring Details

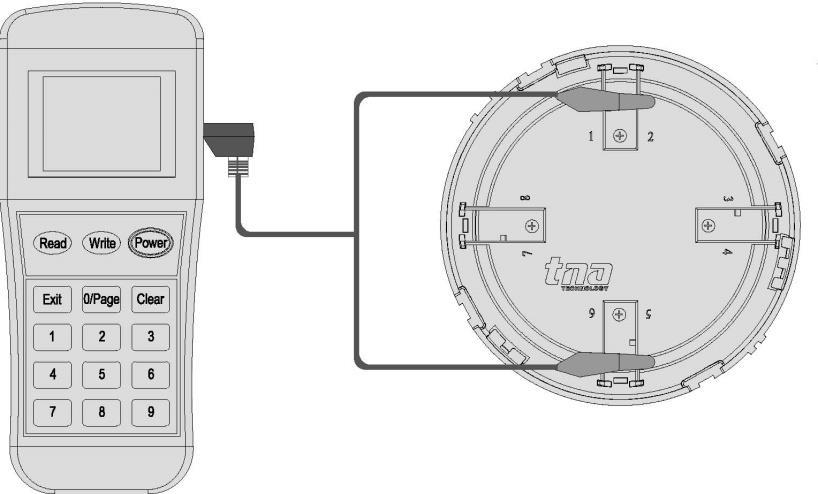

Programming Technique Using Handheld Digital Programmer
