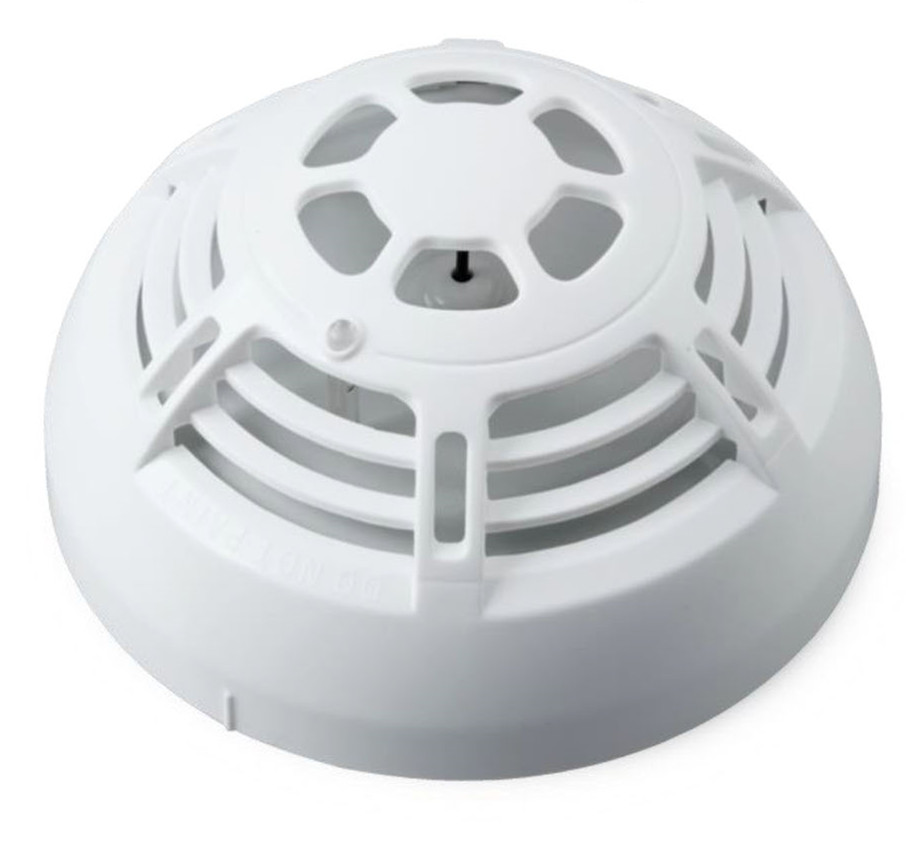

TX7110
Intelligent Heat Detector
1Feature and Benefits
- EN54-5 Compliance
- Using microprocessor technology with memory capacity up to 10 events
- Analogue sensor and digital addressing
- Provide real time algorithm to the control panel
- 360 degree visual indicator
- Onsite Adjustable Parameter
- Ancillary remote indicator output
- Aesthetically pleasing design
|
2Technical Specification |
|
|
|
|
l |
Listed |
LPCB Pending |
|
|
l |
Compliance |
EN54-5 |
|
|
l |
Input Voltage |
24VDC [16V to 28V] |
|
|
l |
Current Consumption |
Standby |
0.6mA, Alarm: 4mA |
|
l |
Protocol/Addressing |
TNA, Value range from 1 to 254 |
|
|
l |
Heat Class Type |
A1R |
|
|
l |
Indicator |
Single LED / 360 degree Visual |
|
|
l |
Material / Colour |
ABS / White Glossy finishing |
|
|
l |
Dimension / Height |
Diameter 99.7 mm / 57 mm |
|
|
l |
Weight |
127g (with Base), 72g (without Base) |
|
|
l |
Operating Temperature |
-10°C to +50°C |
|
|
l |
Humidity |
0 to 95% Relative Humidity, Non condensing |
|
