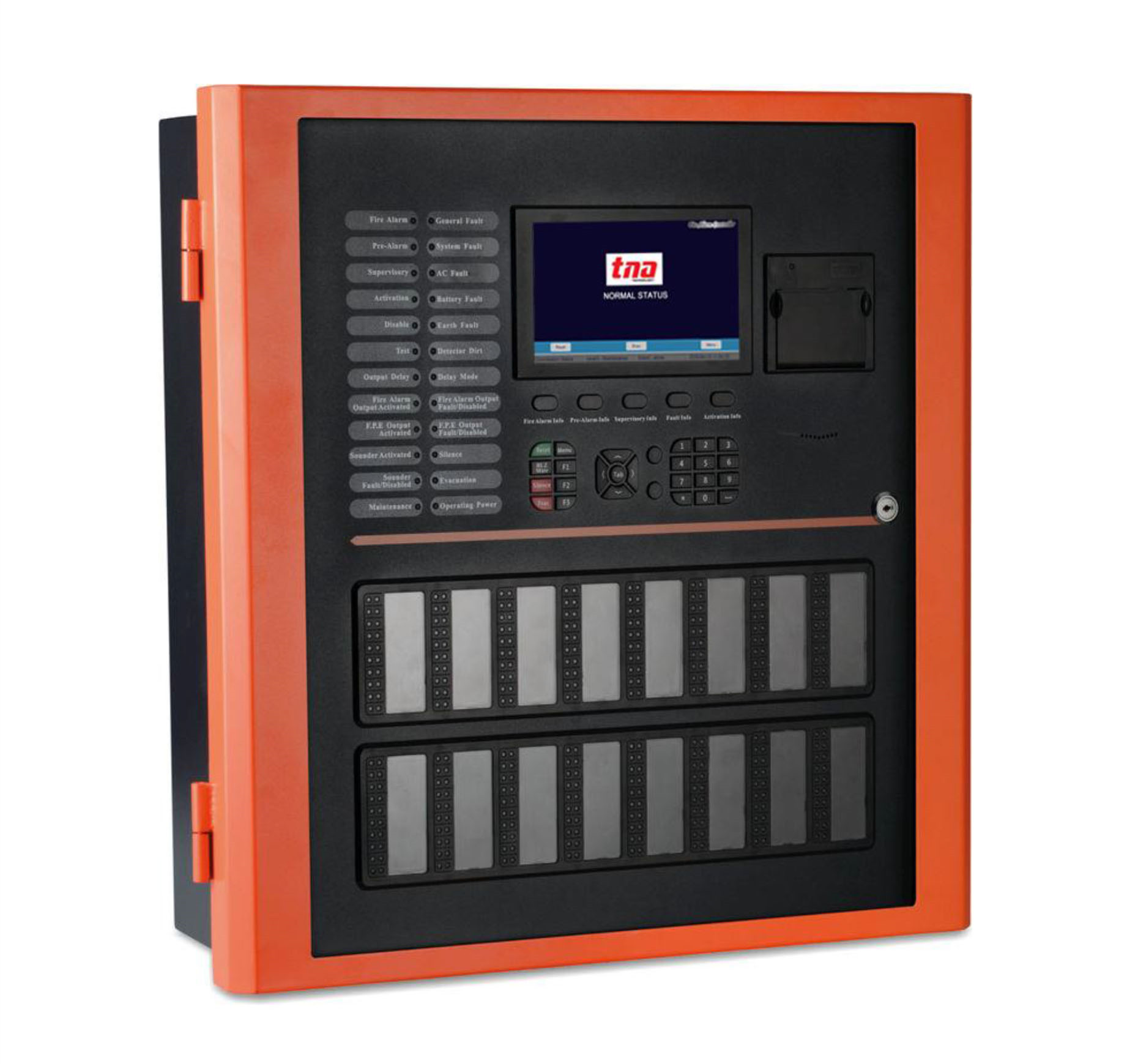

TX7004
Intelligent Addressable Fire Alarm Control Panel
Overview
The TX7004 comprise of a range of analogue addressable, microprocessor based fire alarm control equipment to offer flexibility in both design and operation. The System is modular concept for easy tailoring of system design, to meet the full requirements of the project. The TX7004 Intelligent Fire Alarm Control Panel is designed and manufactured to meet the requirement of BS EN54 Part 2&4.
The TX7004 is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread. Simultaneously, the TX7004 will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gas shut off & damper control, as per the cause and effects requirements configured though Command Builder Set-up.
1 Commissioning Advantage
Compliance EN54-2 & N54-4
LPCB Pending
Using advance microprocessor technology with Large memory capacity
Enhance user interface combining LCD Touch screen and keypad access
Support real time visual algorithm
Enhance false alarm prevention
Keypad and PC programming
Support Multiple interface protocol such as USB/Ethernet/Can Bus/Serial/RS485/Fiber Optic
Support Loop Powered devices for extra saving on cable cost
Built-In Printer and 160 LED Zones Indicators
2 System Capacity
Up to 4 loop
Support 254 Devices/One loop (1,016 ideal)
Network up to 512 Node
Programmable Capacity
Zones up to 3000
Sounders Groups 1-1000
Other Groups 1001- 2000
Built-in 160 LED Zones Indicator
3 Commissioning Advantage
Auto Enrolling of Devices
Monitor device mismatch and dual address conflict
Command Builder to create requirements for fire event scenario
With Loop protection against power surge
One-man test with On/Off sounder
Programming Protection
|
4 Technical Specification |
|
|
|
l |
Listed |
LPCB Pending |
|
l |
Compliance |
EN54-2 & 4 |
|
l |
Input Voltage |
100VAC to 240 VAC 50/60Hz |
|
l |
Input Current Consumption |
1 A |
|
l |
Panel Rating |
24VDC |
|
l |
Batteries |
2 x 12V / 24AH |
|
|
|
Rechargeable-Lead acid type battery |
|
l |
Networking and Interfaces |
|
|
|
Panel to panel communication |
Class A, Can Bus [loop]; Panel to Panel 3kms |
|
|
Number of Panels |
512 |
|
|
Interface Port |
USB, RS485 Serial, RS232 Serial, Ethernet |
|
l |
System Capacity |
|
|
|
Memory [Non-Volatile] |
1000 Fire Events, 10,000 General Event |
|
|
Zones |
3,000 programmable |
|
|
Total Group |
3,000 programmable |
|
|
Sounder Group |
1,000 programmable |
|
|
Common Group |
2,000 programmable |
|
l |
Loop Specifications |
|
|
|
Protocol/Addressing |
TNA, Value range from 1 to 254 |
|
|
No. of Loop |
4 Loops Class A |
|
|
Protection |
Built-in 4kV Surge protection |
|
|
Power rating |
24Vdc Output/400Ma |
|
|
Cabling |
1.2Km Max Length/2 x 1.5mm²solid core Fire |
|
|
resistance |
|
|
l |
Panel Input/outputs |
|
|
|
Programmable Relays |
4 circuits: Normally Open/Close |
|
|
Programmable Input |
1 Circuit: Power limited 24Vdc (for future use) |
|
|
Programmable Auxiliary Power |
Power Limited 24VDC |
|
|
Fixed Outputs |
2 Circuits: Power limited 24Vdc |
|
l |
Indicator |
24 LED Status/ 160 Zone Indicators |
|
l |
Display |
7” TFT Touch Screen |
|
l |
Keypad |
5 Brigade buttons and Programming Keypad |
|
l |
Material / Color |
Flat sheet Metal / with outer glass door, Orange |
|
|
stripe |
|
|
l |
Dimension Lx W x H |
530 mm x 490 mm x 135 mm |
|
l |
Weight |
16.70 Kg |
|
l |
Humidity |
0 to 95% Relative Humidity, Non condensing |
