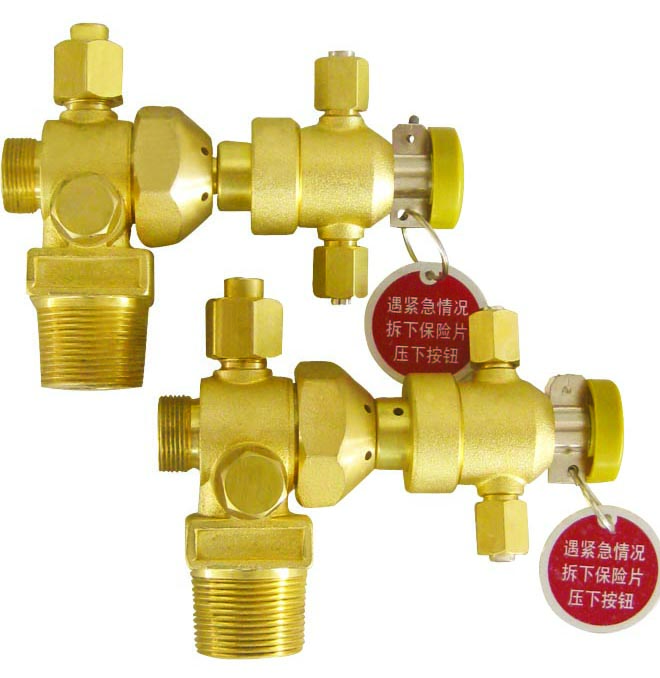

IG541 Container Valve HRF16/17.2


IG541 Container Valve

HRF16/17.2



1 Overview

The container valve installed on the fire extinguishing agent storage bottle is used to seal the storage bottle of fire extinguishing agent and driving gas. When fire occurs, it’s opened by the driving gas or the electromagnet valve. The driving gas pushes the fire extinguishing agent, which is then conveyed to the fire place, to put out fire.

2 Technical Parameter

Model

Nominal working pressure

Nominal diameter

Outlet thread &sealing method

Inlet thread

Siphon thread

Safe discharge pressure

HRF16/17.2

17.2MPa

16 mm

M27*1.5

Taper seal

PZ39

M16*1

23MPa
