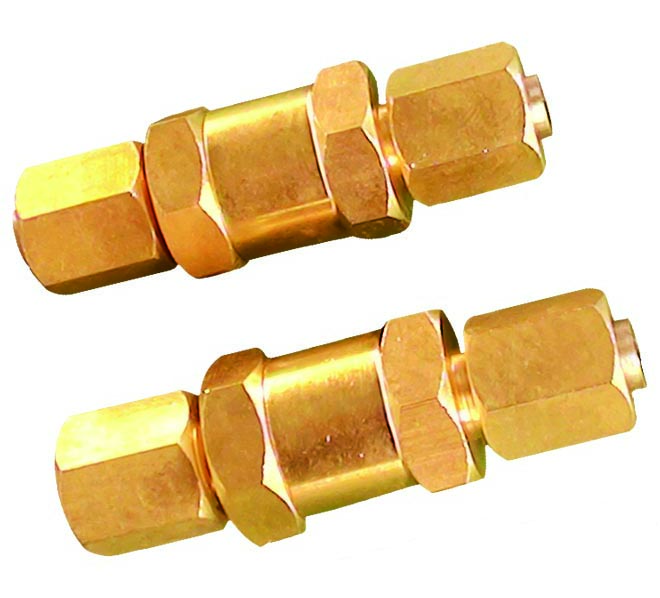

Driving Gas Control Line Check Valve
QQD6/6.6
Driving gas control line check valve installed on the starting pipe is used to control the flow direction of the driving gas.
It is commonly used in a combined distribution FM200 system to realize the startup of corresponding devices in different protection areas.
2 Technical Parameter
|
Model |
Nominal working pressure |
Nominal diameter |
Outlet thread |
Inlet thread |
Open pressure |
|
QQD6/6.6 |
6.6MPa |
6mm |
M14*1.5 |
M14*1.5 |
0.1MPa |
