Net nozzle & Cabinet nozzle
 |
 |
1 Overview
The net nozzle is installed at the end of the fire extinguisher pipeline for spraying the fire extinguishing agent to the protected area.

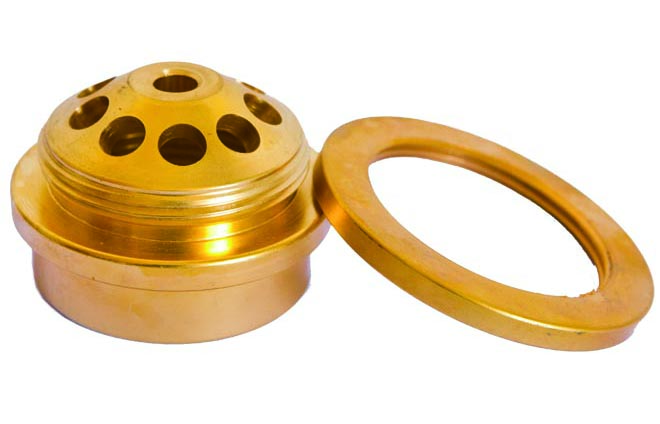

The cabinet nozzle is connected to the outlet of the cylinder container valve through the discharge hose and is fixed to the cabinet box on the panel. When fire occurs, the container valve is open, the extinguish agent is discharged through the discharge hose then the nozzle to put out fire.
2 Technical Parameter
The net nozzle
|
Model |
Nominal diameter |
Connect thread |
|
QPT15 |
15 |
Rc3/8‘’ |
|
QPT20 |
20 |
Rc3/4‘’ |
|
QPT25 |
25 |
Rc1‘’ |
|
QPT32 |
32 |
Rc11/4‘’ |
|
QPT40 |
40 |
Rc11/2‘’ |
|
QPT50 |
50 |
Rc2‘’ |
|
Model |
Nominal diameter |
Connect thread |
Tighten thread |
|
PT32 |
32 |
Rc11/4‘’ |
M48*2 |
|
PT40 |
40 |
Rc11/2‘’ |
M58*2 |
