1 Product description：

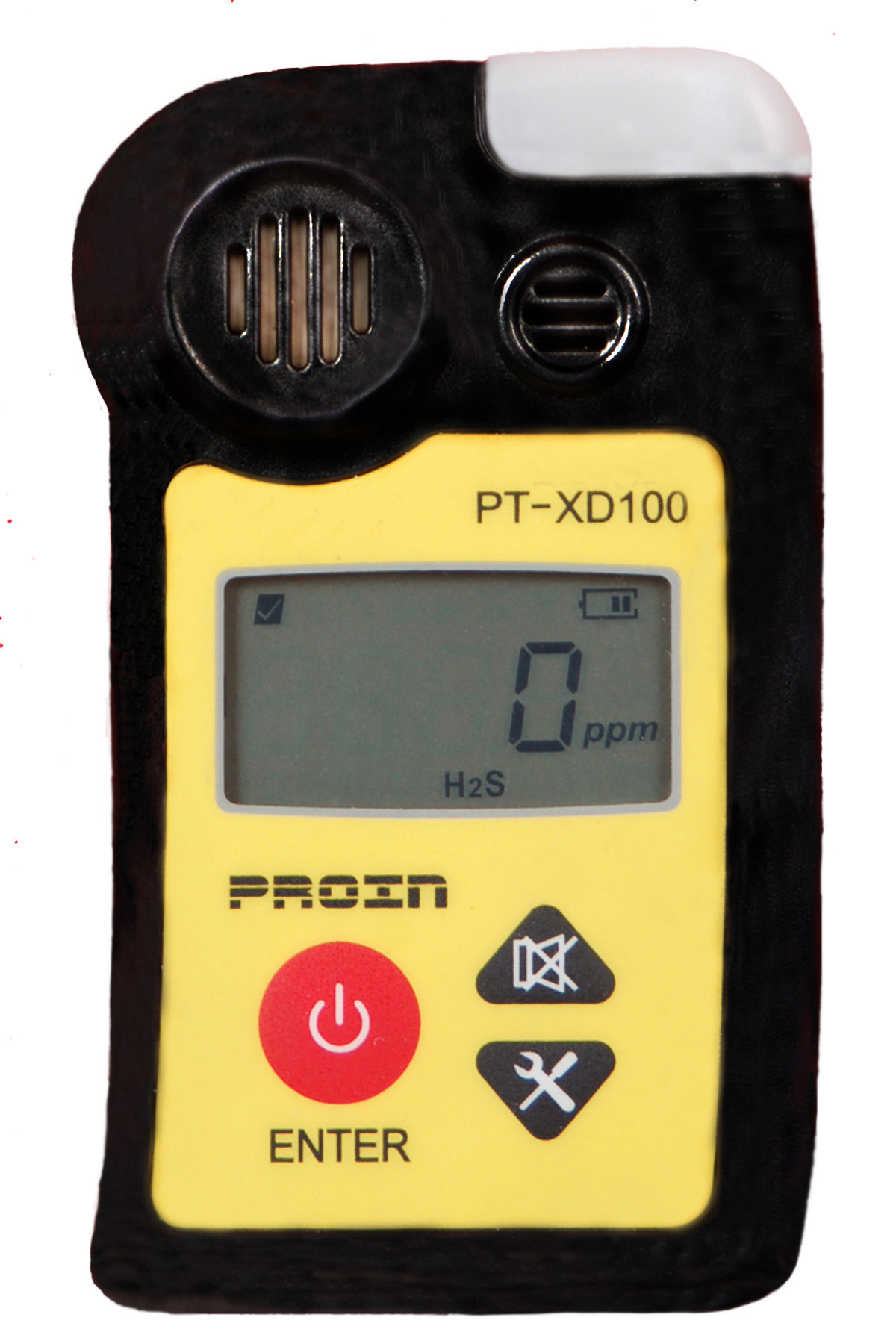

Portable Single-Gas Personal Detector works in a continuous way of detection of toxic gas concentration, as intrinsically safe equipment, it’s suitable for explosive hazardous places.
2 Features and benefits：
Key component failure detection function, monitor the normal working condition:
Low consumption, long standby, rechargeable lithium battery design.
Normal detection power consumption is less than 500μA
Battery power consumption 650mAH
Sustainable at least 50 days (24 hours a day).
No power consumption if off
Temperature compensation function:
Ensure accurate measurement over the entire operating temperature range.
Display the field temperature
Zero adjustable setting and full scale calibration without open it
With low/high limit, STEL and TWA etc. alarm functions, easily rewrite the alarm point
Sound, light, vibration 3 kinds of alarm
Silence function
LCD display, continuously shows real-time gas concentration, background light automatically open
CMC&explosion-proof certificate
3 Gas types and measurement range:
|
NO |
Gas types |
measurement range |
Low |
High |
STEL |
TWA |
|
1 |
Carbon monoxide |
（0～1000）µmol/mol |
35 |
200 |
200 |
35 |
|
2 |
Hydrogen Sulfide |
（0～100 ）×10-6µmol/mol |
10 |
15 |
15 |
10 |
|
3 |
Oxygen |
（0～30.0） %V/V |
19.5% Deficit |
19% Deficit |
- |
- |
|
|
|
|
23%Excessive |
23.5% Excessive |
- |
- |
|
4 |
Ammonia |
（0～100 ）×10-6µmol/mol |
25 |
50 |
30 |
25 |
|
5 |
Chlorine |
（0～50）×10-6µmol/mol |
0.5 |
1 |
1 |
0.5 |
|
6 |
Hydrogen cyanide |
（0～30）×10-6µmol/mol |
4.7 |
10.0 |
10.0 |
4.7 |
|
7 |
Nitric oxide |
（0～100） ×10-6µmol/mol |
25 |
25 |
25 |
25 |
|
8 |
Nitrogen dioxide |
（0～50）×10-6µmol/mol |
2.0 |
5.0 |
2.0 |
5.0 |
Please be noted: Other gas types / measurement range/ alarm concentration can be customized.
4 Technical parameters:
Alarm current:
≤100mA
Normal current:
≤0.5mA
Sensor type:
Electrochemical equation
Gas sampling mode :
Diffusion type
Typical response time:
Ammonia, hydrocyanic acid:160s
Oxygen: 20s
Other toxic gases: 60 s
Battery type:
Rechargeable lithium battery
Battery parameters:
Nominal voltage 3.7V,
Nominal capacity 650mAH
Charging temperature range
0℃～40℃
Sound alarm
80dB/10cm
Indicator alarm:
Failure: yellow always
Alarm: red flashing
Vibration alarm:
Built-in
Display:
LCD with backlighting
Humidity
15%-95%，no condensation
Operating temperature
-20℃～55℃
Dimensions
98mm×58mm×28mm
Weight
130g
5 Application:
Oil &Petrochemical
Metallurgy
Chemical industry
Environmental protection
Papermaking
Printing and dyeing
Municipal
Research &Education
National defense
