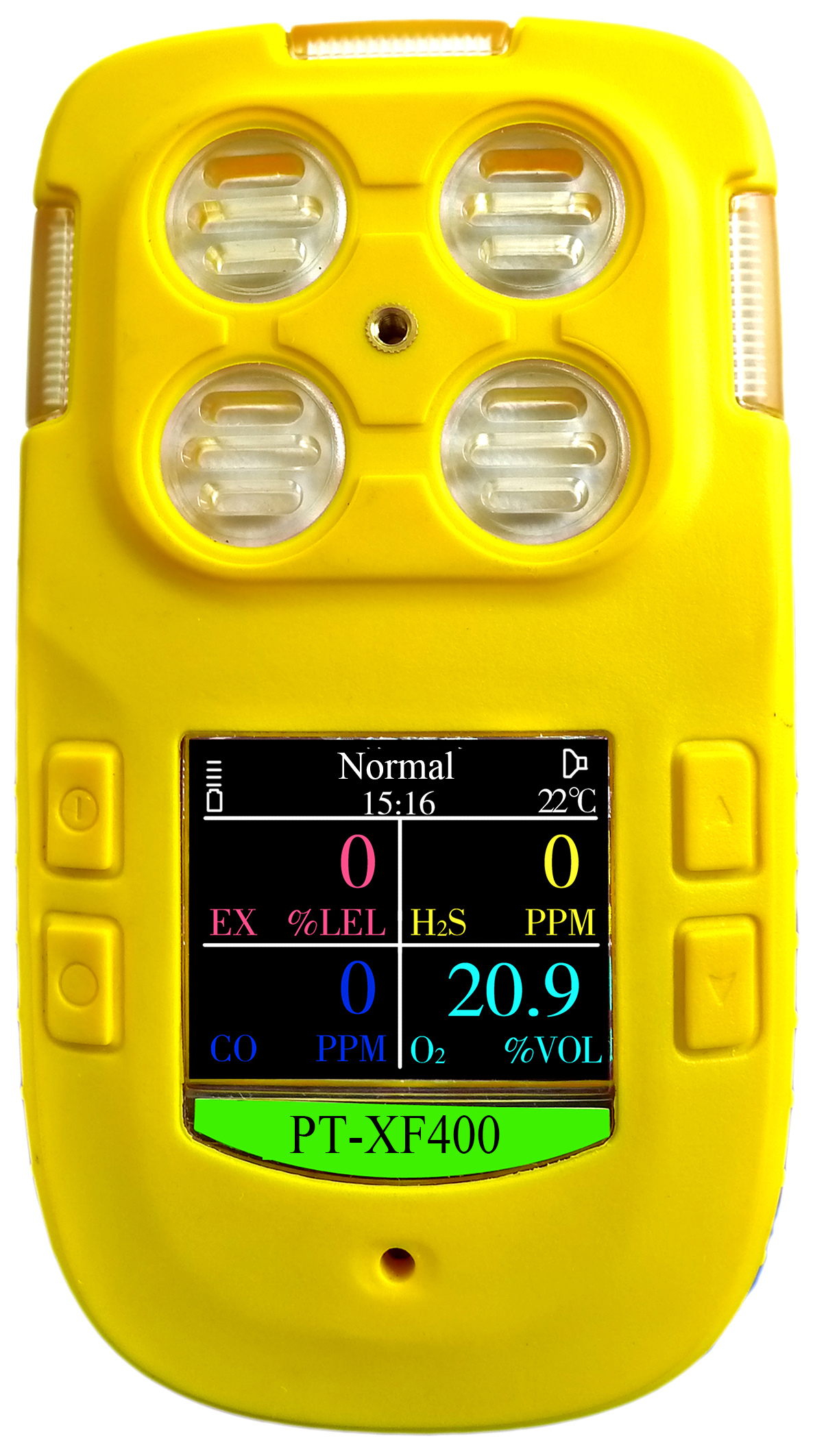

1 Product description:
Portable multi-gas alarm is a continuous detection of multi-gas (combustible gases, oxygen and toxic gases) concentration, easy to use personal protective gas detector. The color OLED display shows the measured gas concentration and other information. The decibel buzzer, alarm indicator and vibration alarm indicate that the current gas concentration has exceeded the set alarm point.

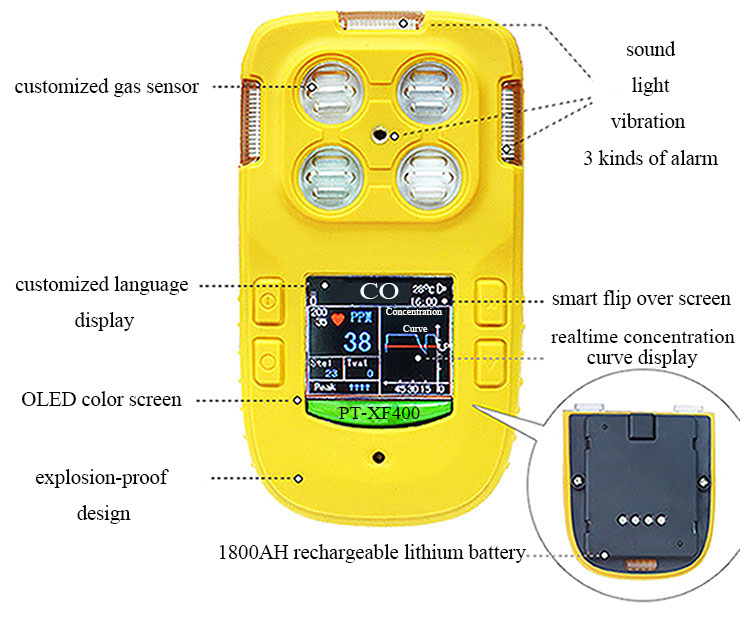

2 Features and benefits：
- The color OLED display continuously displays the gas concentration in real time
- Automatic zero adjustment and calibration function
- Automatically start full-function test (including sensor fault detection) when power on
- Gas concentration curve browsing function, intuitive and convenient (optional, factory settings)
- The screen display content can be flip over (optional, need to customize)
- Event record function (optional, to be customized)
- Detection of toxic gas types can be set (optional, to be customized)
- Sound, light, vibration 3 kinds of alarm
- Rechargeable lithium-ion polymer battery design
- Explosion-proof design
3 Gas types and measurement range:
A Gas types：
|
Combustible gas included |
Oxygen, CO, Combustible gas, H2S |
|
Carbon dioxide included |
Oxygen, Carbon dioxide, Carbon monoxide |
|
Toxic gases can be replaced with |
Ammonia, Sulfur dioxide, Chlorine, Ozone, Nitric oxide, Nitrogen dioxide, Hydrocyanic acid, Phosphine, Hydrogen and other gases (to be customized) |
Please be noted: Oxygen and combustible gases are not replaceable
All types of gas can be closed as a separate channel.
B Measurement range：
|
Gas types |
measurement range |
Gas types |
measurement range |
Gas types |
measurement range |
|
Carbon monoxide |
1000 μmol / mol |
Hydrogen |
1000 × 10-6 |
Combustible gas |
100% LEL |
|
Hydrogen sulfide |
100 × 10-6 |
Ammonia |
100 × 10-6 |
Chlorine |
50 × 10-6 |
|
Oxygen |
30.0% |
Sulfur dioxide |
100 × 10-6 |
phosphine |
10 × 10-6 |
|
Hydrogen cyanide |
30 × 10-6 |
Ozone |
1 × 10-6 |
Nitrogen dioxide |
50 × 10-6 |
|
Nitric oxide |
100 x 10-6 |
Carbon dioxide |
5.0% |
|
|
4 Technical parameters:
|
Battery type |
Lithium-ion polymer |
|
|
Battery parameters: |
Rated voltage 3.7V, nominal capacity 1800mAh |
|
|
Working current: |
Normal current: ≤ 100mA Alarm current: ≤190mA |
|
|
Explosion-proof grade |
ExdibIIBT3 Gb |
|
|
Sensor type: |
Carbon dioxide |
Infrared |
|
Combustible Gas: |
Catalytic combustion |
|
|
Oxygen |
Galvani an Battery |
|
|
Toxic gas |
Electrochemical |
|
|
Detection method: |
Diffusion type |
|
|
Response time: |
Carbon dioxide: |
T90 <30s |
|
Combustible gas: |
T90 <30s |
|
|
Oxygen: |
T90 <20s |
|
|
Toxic gas: |
T90 <60s General |
|
|
Full charge continuous working hours: |
≥14 hours (including combustible gas) ≥48 hours (excluding combustible gas) |
|
|
Error: |
Carbon dioxide: |
± 0.1% (volume ratio) |
|
Carbon monoxide: |
± 10% |
|
|
Hydrogen sulfide: |
± 5% FS |
|
|
Combustible gas: |
± 5% FS |
|
|
Oxygen: |
Soil 3.0% FS |
|
|
Other toxic gases |
± 10% (display) or ± 5% (full scale) within, take large |
|
|
Working Environment: |
Temperature: -20 ℃ ~ 40 ℃ Relative humidity: 15% -95%, no condensation |
|
|
Storage environment: |
Temperature: -20 ℃ ~ 60 ℃ Relative humidity ≤ 90%, no condensation |
|
|
Charging temperature range: |
0 ℃ ~ 40 ℃ |
|
|
Protection class: |
IP65 |
|
|
Material: |
PC, ABS, anti-static TPE |
|
|
Dimensions |
130mm × 72mm × 36mm |
|
|
Weight: |
310 grams |
|
5 Application:
- Oil &Petrochemical Metallurgy
- Chemical industry Environmental protection
- Papermaking Printing and dyeing Municipal
- Research &Education National defense
